Specifications
- Yard no.
- #706/Y103
- Type:
- A Class Racing Schooner
- Designer:
- Nathanael G. Herreshoff
- Year:
- 2009
- Naval Architect:
- ACUBENS Naval Architects Madrid
- Builder:
- FACTORIA NAVAL DE MARIN Galicia, Spain
-
-
- Hull
-
- Length Over All (l.o.a.):
- 55.00 m / 180’ 5”
- Length Over Deck (l.o.d):
- 41.60 m / 136’ 6”
- Length Waterline (l.c.w.l.):
- 29.60 m / 96’
- Beam Max.:
- 8.14 m / 26’ 8”
- Draft:
- 5.20 m / 17’
- Displacement:
- 215 tons
- Hull Speed:
- 13.6 knots
- Range Under Power:
- ± 3.000 nm@ 10 knots
-
-
- Sail Area
-
- Total Upwind:
- 1.180 m2
- Total Downwind:
- 1.800 m2
-
-
- Air Draft:
- Main mast is 42 m above waterline
-
-

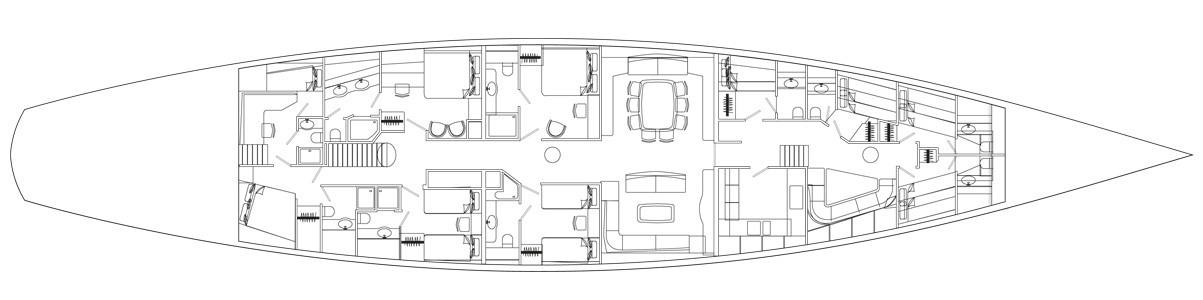

- Accommodation
-
- Guests:
- 8 in 4 cabins
- Crew:
- 8 in 5 cabins
-
-
- Entertainment
-
- Systems:
- State of the art audio/visual systems and an extensive DVD library.
-
-
- Communications:
- Broadband and voice communications via Fleet 55 Sat and Vodafone 3G. Wifi is available throughout the boat. Telephones are available in all cabins.
-
-
- Construction
-
- Hull:
- Steel
- Deck:
- Teak
-
-
- Propulsion System:
- MAN V12 D2482LE 600 HP @ 1.800 rpm
-
-
- Bow Thruster:
- Hundested, FT 3 R hinged 70 kW
-
-
- Generators:
- 1 x Kohler 70 EFOZ 65 kW 50 HZ
1 x Kohler 50 EFOZ 50 kW50 HZ
Diesel driven generators -
-
- Tank Capacities
-
- Fuel:
- approx. 15.000 litres
- Fresh Water:
- approx. 10.000 litres
-
-
- Watermaker:
- Aquamar. Capacity 4.800 litres daily
-
-
- Air Conditioning:
- Marin Air + Air Treatment Unit. Controls in each cabin
-
-
- Winches:
- Lewmar Classic Bronze
-
-
- Anchor System:
- Lewmar 2 x 8000 Hydraulic Windlasses
-
-
- Spars, Booms and Masts:
-
- Calculation and Construction:
- Brasker Masts Holland. All Elena’s lower spars and booms are constructed of carefully selected Oregon Pine while her upper masts, gaffs, jackyards and spinnaker boom are constructed of the finest quality Alaskan Sitka Spruce
-
-
- Sails:
- North Sails USA Classic cut Dacron
-
-
- Tender:
- VALIANT 4.5m with 50hp 4 stroke Mercury outboard
